Inicio ProductosUnidad de freno de embrague neumático de la serie KB / TCB / PCCU

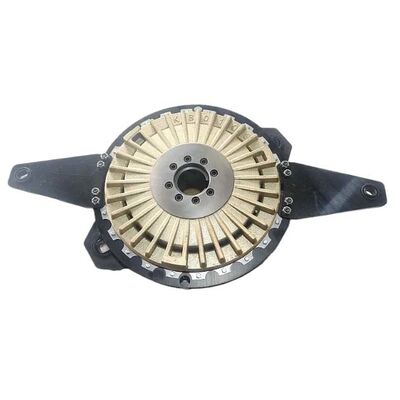

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200

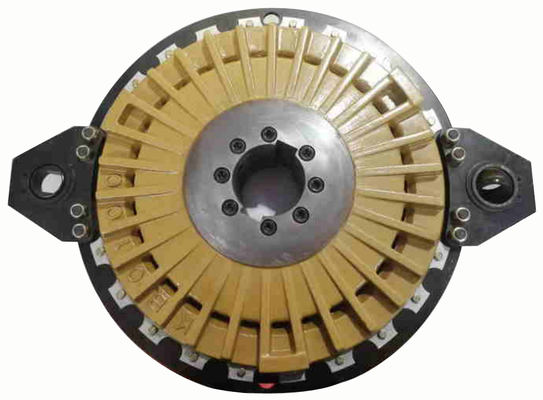

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200

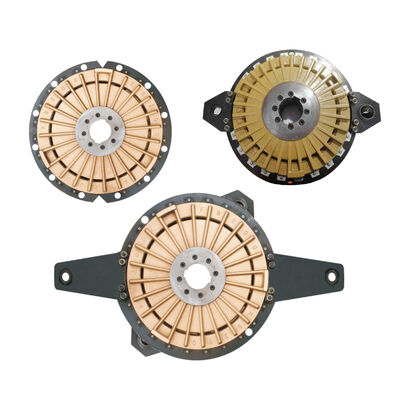

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200

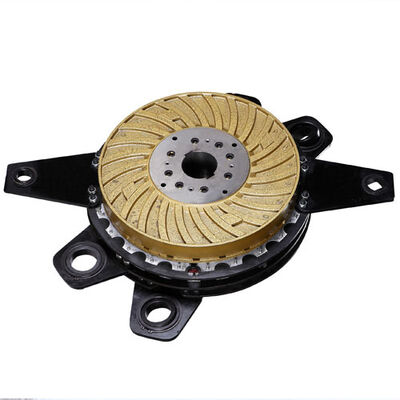

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200

Ampliación de imagen :  KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Sunlly
Número de modelo: KB, TCB, PCCU, CCB
Pago y Envío Términos:
Cantidad de orden mínima: 1 pieza
Detalles de empaquetado: cajas de madera
Tiempo de entrega: 10 días
Condiciones de pago: T/T
Capacidad de la fuente: 700 piezas al mes
Descripción detallada del producto

KB Series Air / Pneumatic Clutch Brake Combination

The KB series pneumatic friction clutch and brake combination unit is a good replacement for the OMPI PccU pneumatic clutch and brake combination unit.

They are similar in size and function, easy to use, and more economical.

The unit consists of a pneumatic clutch and brake, so the clutch and brake components can work together.

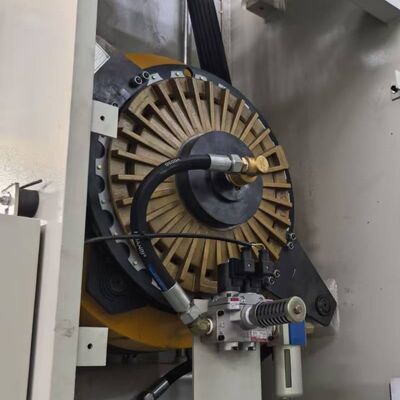

This KB-type pneumatic clutch and brake combination is commonly used in punch presses, die-cutting machines, cutting machines, and other forging equipment. In a die-cutting machine, air enters the clutch through the inlet, pushing the piston forward and compressing the liner. This, in turn, drives the drive shaft to rotate via the clutch base, engaging the clutch. When the air pressure is released, the piston moves backward under the action of a spring, compressing the liner again, disengaging the clutch; then the braking mechanism engages, stopping the rotating parts.



Feature:







  • The friction material is asbestos-free, making it safe and reliable.

  • Replacing the friction plates is simple and does not require disassembling the clutch.

  • The clutch ear plates come in a variety of configurations to suit different needs.

  • Suitable for industries such as stamping machines, forging machines, power presses, shearing machines, wood working machines,, textiles, cutting machines, ect.

Theory

The pneumatic clutch/brake combination unit consists of a pneumatic disc clutch and a spring-loaded disc brake. Its compact design, high thermal capacity, and low air consumption make it an ideal choice for high-speed, high-cycle, heavy-duty industrial applications. When the cylinder is pressurized, the piston clamps the clutch disc against the hub, thereby transmitting torque to the shaft. When the cylinder is vented, the spring moves the piston in the opposite direction, clamping the brake disc and bringing the shaft to a stop.

In the pneumatic clutch, the axial thrust required to establish torque is transmitted by the piston moving within the cylinder. When the cylinder chamber is depressurized, the spring pushes the piston back to its initial position.



In a spring-loaded brake, the axial thrust required to generate torque is provided by springs. The brake is released by applying the appropriate air pressure to the piston. In a combined unit, the friction engagement on the clutch side is generated by air pressure, while the friction engagement on the brake side is generated by spring pressure. The number of springs and the resulting spring pressure can be selected based on the required torque.



Both single-plate and double-plate clutches and brakes allow for high switching frequencies and high thermal loads. Multi-plate clutches and brakes, on the other hand, offer a better torque-to-weight ratio, but their permissible thermal load is lower than that of single-plate and double-plate units. Pneumatic clutches and spring-loaded brakes can be combined into a single-plate unit. This unit, developed specifically for presses and shears, can be installed in the very limited space between the flywheel and the machine body. Overlap between the clutch and the brake is completely eliminated.





Torque Corresponding to Spring Number   (Unit: mm)

Model Cluth torque Brake torque Number of spring
Air pressure =5.5kg/cm2 Air pressure =6kg/cm2
Nm Nm Nm
KB25-18 239 286 223 18
KB25-15 285 332 186 15
KB25-12 332 378 148 12
KB25-9 378 425 111 9
KB50-24 521 624 482 24
KB50-21 593 687 422 21
KB50-18 544 768 366 18
KB50-15 742 842 305 15
KB50-12 804 909 249 12
KB100-18 1031 1204 835 18
KB100-15 1204 1387 724 15
KB100-12 1364 1534 576 12
KB100-9 1544 1832 300 9
KB100-6 1700 1900 287 6
KB200-18 2542 2938 1546 18
KB200-15 2839 3242 1280 15
KB200-12 3150 3542 1022 12
KB200-8 3450 3981 780 8
KB400-18 4601 5267 3900 18
KB400-15 5387 6045 3234 15
KB400-12 6012 6832 2554 12
KB400-9 6765 7598 1998 9
KB400-6 7521 8354 1319 6
KB500-18 6423 7367 3778 18
KB500-15 7112 8676 3188 15
KB500-12 7921 8907 2567 12
KB500-9 8601 9645 1899 9
KB600-18 7337 8532 5678 18
KB600-15 8312 9546 4531 15
KB600-12 9412 10874 3647 12
KB600-9 10521 11975 2701 9
KB800-18 10201 11876 7011 18
KB800-15 12011 13476 5701 15
KB800-12 12344 14398 4501 12
KB800-9 14301 15960 3503 9
KB1200-18 17678 20221 8021 18
KB1200-15 19124 21458 6700 15
KB1200-12 20187 23123 5344 12
KB1200-9 22165 24657 4021 9
HT1500-18 20067 21891 12400 18
HT1500-15 21635 24584 10333 15
HT1500-12 23796 26745 8267 12
HT1500-9 25957 28906 6200 9
HT2150-18 24435 28365 16450 18
HT2150-15 27570 34500 13708 15
HT2150-12 30705 34635 10967 12
HT2150-9 33840 37770 8225 9
HT2900-15 30400 35300 21900 15
HT2900-12 35100 40750 17500 12
HT2900-9 39800 46200 13100 9
HT2900-6 44500 51600 8700 6



Parameter  (Unit: mm)

Position
Model
KB 25 KB 50 KB 100 KB 200 KB 400 KB 500 KB 600 KB 800 KB 1200 HT 1500 HT 2150 HT 2900
Hole Dia. A Φ A ma x 38 45 60 80 90 100 105 120 140 160 180 200
Φ A m i n 26 29 45 50 60 65 70 75 90 100 125 130
Part components dimensions Brake plate outer Dia. ΦB 220 275 352 440 535 570 620 680 775 775 865 950
Clutch outer Dia. ΦC 188 236 304 380 465 497 543 593 675 675 755 830
Cylinder outer Dia. ΦH 85 110 136 165 182 210 215 238 266 290 330 360
Base outer Dia. ΦF 85 104 115 150 160 190 200 210 230 295 310 360
Total height M 58 66 83 100 125 140 145 155 185 223 242.5 264
Air inlet Height N 17 19 22 27 32 36.5 36.5 42 53 65 68.5 76
Dia. P 6 7 10 12 15 16 18 18 23 21 23 25
XY Type
Installation dimensions
Long ear (Mounting Bracket) Y (Brake) 340 410 600 710 790 885 1020 1170 1360 1400 1450 1450
YY 384 453 540 705 870 966 1010 1100 1247 1247 1359 1610
FF 28 28 28 45 60 60 60 80 90 90 90 130
GG 18 24 41 56 64 76 72 78 93 82 95.5 94
Brake pin ΦEE 16 16 16 22 30 30 30 40 45 45 45 65
Short ear (Mounting Bracket) X (clutch) 232 296 364 445 550 575 640 684 775 880 970 1100
XX 276 349 450 565 640 673 795 794 903 1008 1110 1264
LL 4 5 0 0 3 0 6 9 8 19 13 26.5
CC 28 45 45 60 80 80 80 90 110 110 110 150
Clutch pin Dia. ΦKK 16 22 22 30 40 40 40 45 55 55 55 75
QQ Type Installation dimensions 12 holes installation center Dia. 205 255 325 408 500 536 584 640 725 725 810 890
Steel sleeve Dia. 10 12 15 18 25 25 25 30 35 35 41 45
Steel sleeve height L 12 14 21 25 28 32 33 38 32 35 41 45
12 holes screws ΦS M5 M6 M8 M10 M14 M14 M14 M16 M20 M20 M24 M24
T 16 17 17 19 25 26 35 33 48 29.8 33.3 107
TT 19.9 21.7 26.3 28.8 36 39 48 47 57 106.8 112.3 121
U 10 11 14 18 30 32 24 27 43 91.8 98.8 36
UU 12.9 14.5 23.3 29.3 41 45 37 41 52 40.3 46.7 50.5
V 25.2 29.8 33.4 41.9 48 56 60 67 76 76 83.4 92.5
K 3 3 4 4 4 4 4 5 5 5 6 6
QX Type Installation dimensions W 55 63 80 106 133 144 140 158 188 175 189.5 212
VQQ Type Installation dimensions D / / 1.5 2 2 2 2 2.5 3 3 6 6
I / / 18.5 23.5 34 37 29 31.5 42 42 33.3 36
II / / 21.5 22.5 29 31 40 37.5 47 47 98.8 107
12 holes screws E / / M8 M10 M14 M14 M14 M16 M20 M20 M24 M24
(rpm)Max. Speed(rpm) 2500 2300 1700 1400 1150 1100 950 900 800 850 750 700
(kg)Weight(kg) 8.5 14 29 53 100 140 160 207 320 325 425 500
Moment of inertia of Body 0.019 0.056 0.185 0.535 1.52 2.11 3.215 5.08 8.85 8.8 15.5 24.8
Moment of inertia of ear (Mounting Bracket) 0.008 0.025 0.062 0.211 0.565 0.835 1.185 1.815 3.745 3.04 5.8 9.5
Air compression capacity(new)(dm3) 0.07 0.15 0.24 0.4 0.6 0.7 0.9 1.3 1.8 2.18 2.9 3.95
Air compression capacity(worn)(dm3) 0.11 0.24 0.284 0.64 0.96 1.12 1.44 2.08 2.88 3.488 4.64 5.78
Air chamber capacity(L) 1.8-3 3.8-6 6-9.6 10-16 15-24 18-28 23-36 33-52 45-72 55-88 72-116 /
Note: The working air pressure of the clutch brake must be no less than 5.5 kgs/cm² and no more than 6 kgs/cm² .







KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 0



KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 1



Air Inlet Flange Size Diagram ( Optional)

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 2



Unit: mm

Model A B C D E N F
KB50 110 26 7 8.5 30 3/8 " 46
KB100 136 34 9 8.5 35 3/8 " 61
KB200 166 42 11 8.5 41 1/2 " 81
KB400 182 50 13 8.5 43 3/4 " 91
KB500 210 60 13 8.5 48 3/4 " 101
KB600 215 61 13 8.5 48 1 " 106
KB800 238 61 15 8.5 52 1 " 121
KB1200 267 65 17 8.5 54 1 " 141
HT1500 295 80 17 8.5 62 1 1/4 " 152
HT2150 330 95 21 8.5 77 1 1/2 " 180
HT2900 330 100 21 13 77 1 1/2 " 200
CCB300 166 42 11 8.5 41 1/2 " 80
CCB380 192 50 13 8.5 43 3/4 " 95
CCB470 238 61 15 8.5 52 1 " 125
CCB550 280 65 17 8.5 54 1" 145
CCB600 300 80 17 8.5 62 1 1/4" 160
CCB680 320 95 21 8.5 77 1 1/2" 180
CCB750 350 95 21 8.5 77 1 1/2" 200



Rotary Joint

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 3





Model A B C D E F G L Max.Speed Max. Temperature Max Air Pressure
H10 Φ10 PT3/8" Φ50 PT3/8" 16 56.5 36 108 1400rpm 120℃ 10.5kg/cm2
H12 Φ12 PT1/2" Φ59 PT1/2" 16 59 40 115 1400rpm 120℃ 10.5kg/cm2
H16 Φ16 PT3/4" Φ62 PT3/4" 20 68 42 130 1400rpm 120℃ 10.5kg/cm2
H20 Φ20 Pt1" Φ73 Pt1" 23 71 44 138 1200rpm 120℃ 10.5kg/cm2
H30 Φ30 PT1-1/4" Φ93 PT1-1/4" 28 85 48 161 1000rpm 120℃ 10.5kg/cm2
H35 Φ35 PT1-1/2" Φ99 PT1-1/2" 30 91 48 169 800rpm 120℃ 10.5kg/cm2

Note: ①C size can be customized,such as: M35 × 1.5,M50 × 1.5,M65 × 1.5.
          ②The above models are right-hand threaded; left-hand threaded models can be customized.



Air pressure control system configuration diagram

KB TCB PCCU Series Single-plate Air / Pneumatic Clutch And Brake Unit clutch brake combination groups TCB PCCU KB100, KB200, KB300 to KB1200 4

Note:  ①. During installation, please place the solenoid valve as close as possible to the rotary joint to facilitate rapid clutch operation.

           ②. When selecting a solenoid valve, prioritize high-flow-rate models.





Rotary joint standard configuration

KB Type 250,050 100 200 400 500 600 80 1200 1500 2150 2900
Rotary joint Size ZG1/4" ZG3/8" ZG1/2" ZG3/4" ZG1" ZG1-1/4" ZG1-1/2" ZG1-1/2"
DX Type 25 30,35,45,75,80 100,110,160 200,250,450 600,800
Rotary joint Size ZG1/2" ZG3/4" ZG1" ZG1-1/2" ZG2"
CCB Type 300 380 470 550 600 680 750
Rotary joint Size ZG1/2" ZG3/4" ZG1" ZG1-1/4" ZG1-1/2" ZG1-1/2"
